2022 Vintage Iron Rayvolt Cruzer – Power Hub 1000w – 10.5ah

The Motor

Rayvolt hubs are a very complex brushless 3 phase dc motor comprising of 48 different copper coils and magnets that are placed on the outermost perimeter of the motor for the best possible torque. The built-in controller receives heat and position data from the coils and within one millisecond computes where to put the next load. Such accuracy produces a Pure Sine Wave (PSW) current, offering unmatched ride comfort:

• More Acceleration
• More Response
• More Torque
• Less Noise
• Less Vibration
• Less Consumption

Batteries

At the core of any electric vehicle, its performance and life expectancy are directly linked to the type of cell used. The capacity of the battery pack also depends on the amount of cells used.

Rayvolt uses 13 cells in a series to reach a nominal voltage of 48V. At peak voltage, a full charge of 54.6V gives incredible power. We use a minimum of 4 cells in parallel (52 cells in total) or 8 cells in parallel (104 Cells in total). This gives an unmatched capacity of 550Wh and 1100Wh – most of the industry uses 300 to 360Wh. Battery quality is linked to the cells used and also the way it is packed. Using a state-of-the-art battery management system in our packs, each cell is connected to it before delivering the charge. This high-tech design balances the charge between each individual cell and can cut the connection in case of a short circuit. This ensures best possible performance while making the battery safer.

IRBS

INTELLIGENT REGENERATIVE BRAKE SYSTEM

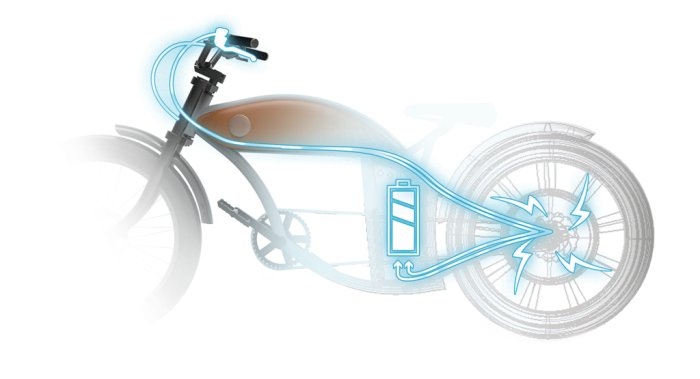

We created an electronic braking system, fitted into the brake levers, that sends a data signal to the motor controller that provokes a reverse effect in the motor. This converts torque into resistance using the wheel inertia to generate electricity and recharge the batteries. In simple words, the regenerative braking acts like an ultra powerful dynamo when the levers are pulled.

The intelligent iRBS is linked to EIVA’s built-in gyroscope allowing the bike to detect the cycling environment. It then provides the necessary amount of regenerative brake according to the angle of the hill.

IPAS

INTELLIGENT PEDAL ASSIST

With multiple choices power assistance with gyroscope hill detection Motor aid self adjusts. The Electronic Crank comes fitted with a Load Cell, which measures both the Torque applied to the pedal and the crank rotary speed. A Controller then computes these two values, and with a smart algorithm, provides perfectly smooth power based on muscle activity.

Eiva®

The Eiva® is a Rayvolt’s proprietary software which controls, customizes and monitors your Rayvolt bike. An Eiva® computer can be purchased and securely mounted to the handlebars, ready to go whenever you are. The software can also be downloaded for use on an existing Android or iPhone.

Features:

1. Display 360º
   Monitor speed, battery state, MPH/KM Run & essential bike specs
2. Bluetooth bike status
   Monitor the connection between the bike and Eiva®
3. iPas Monitoring
   Adjust your pedal assistance here
4. Settings
   Advanced configurations Also Technical support chat
5. Music
   Play your music, your way.
6. Maps
   GPS access
7. Information
   Display Help
